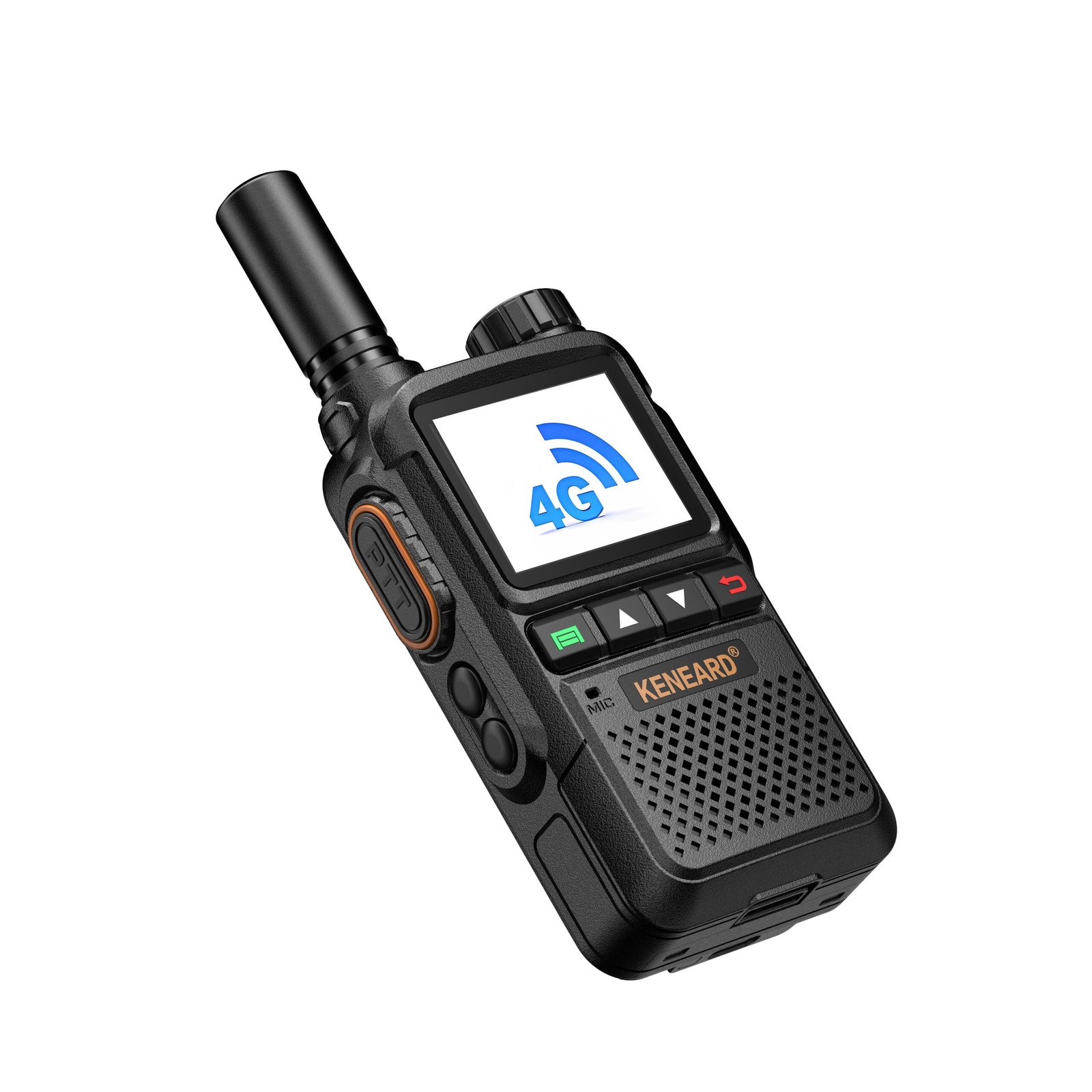

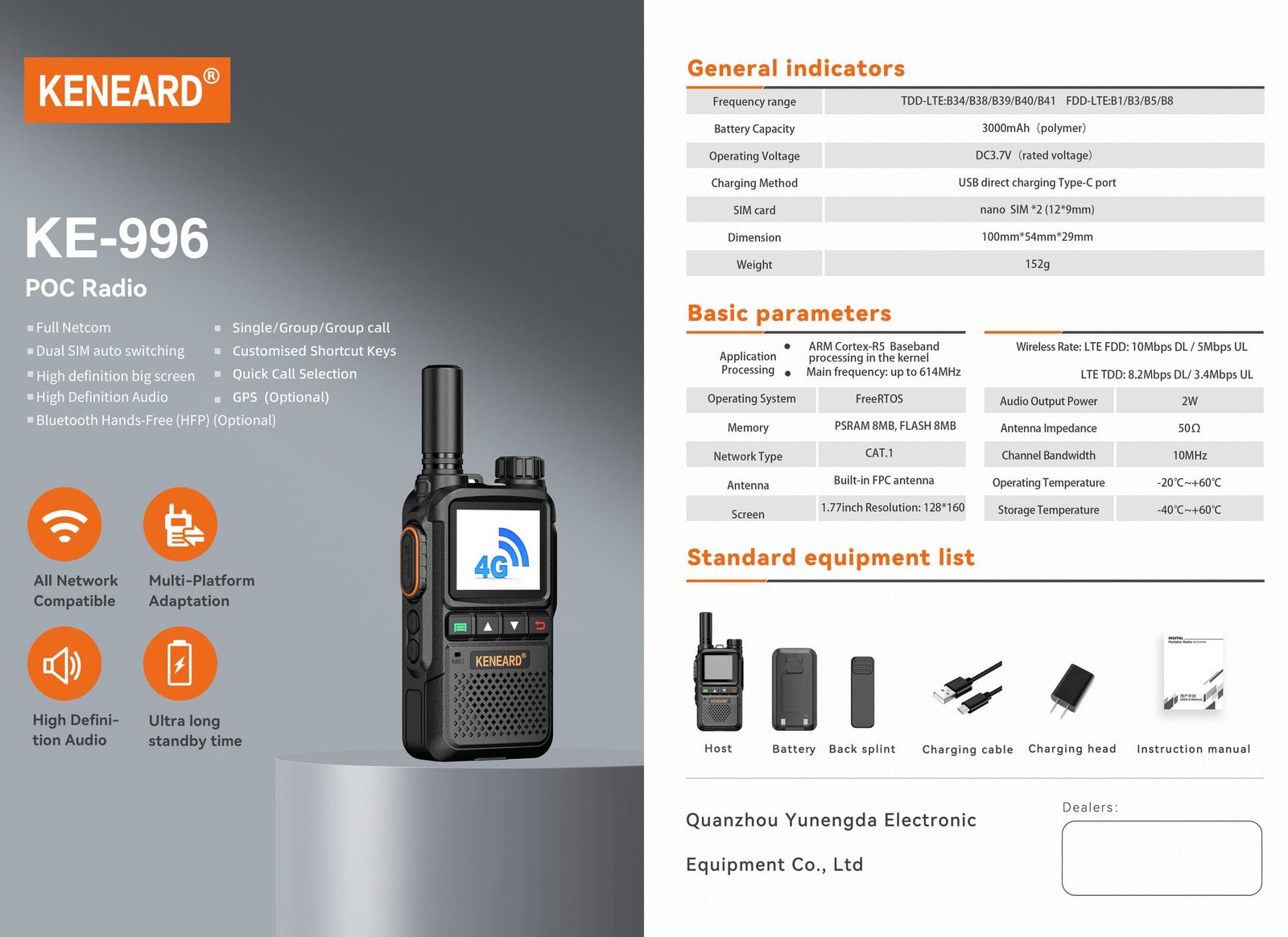

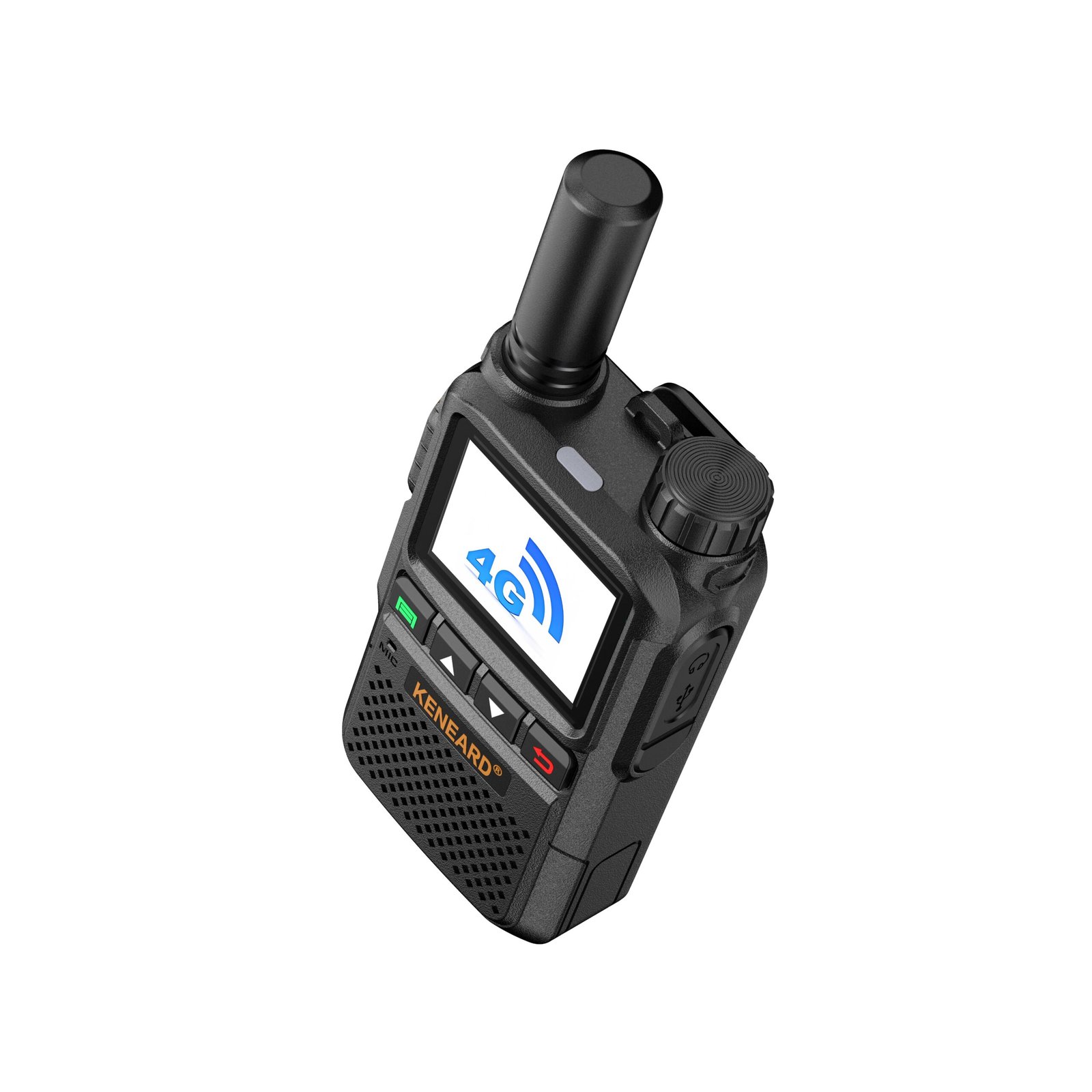

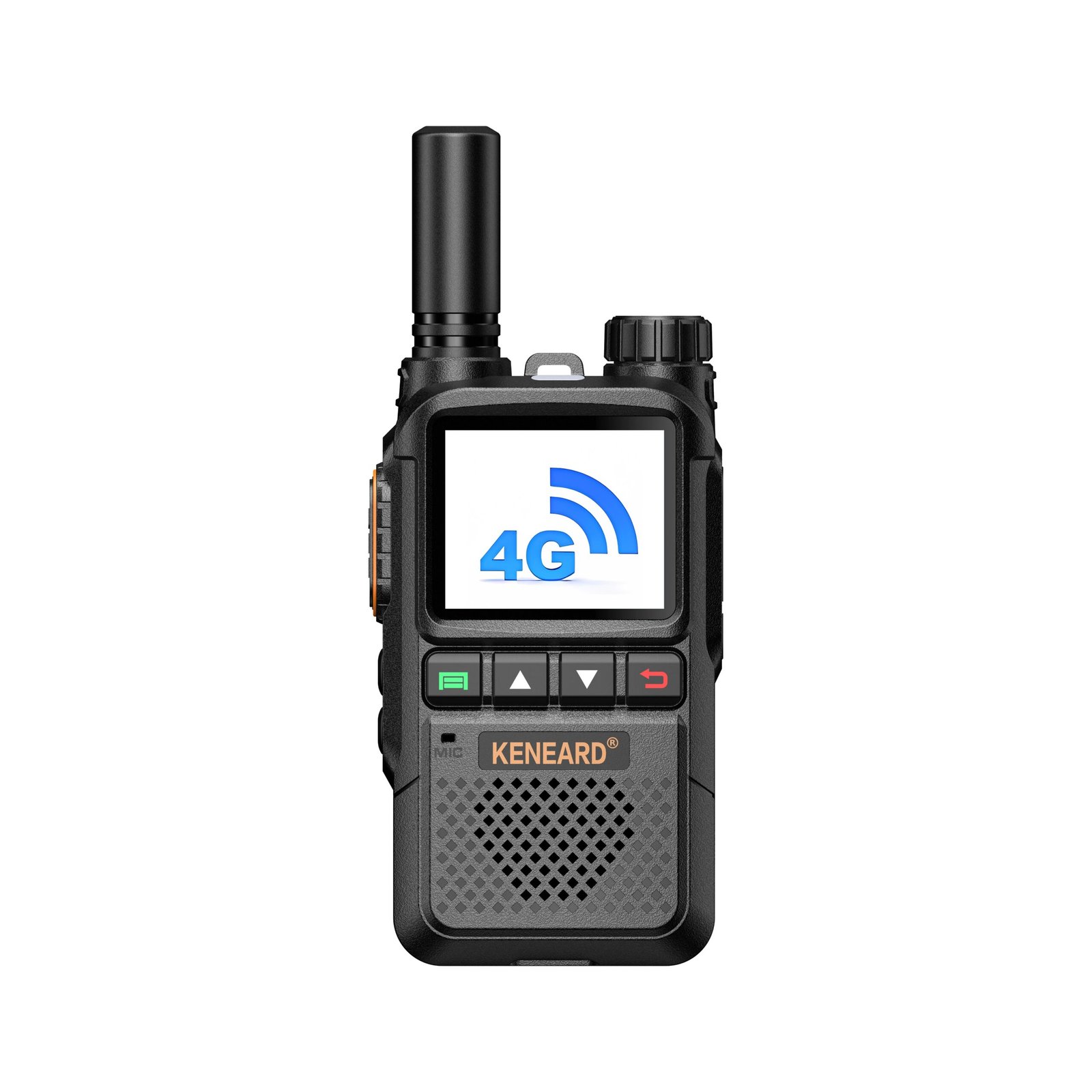

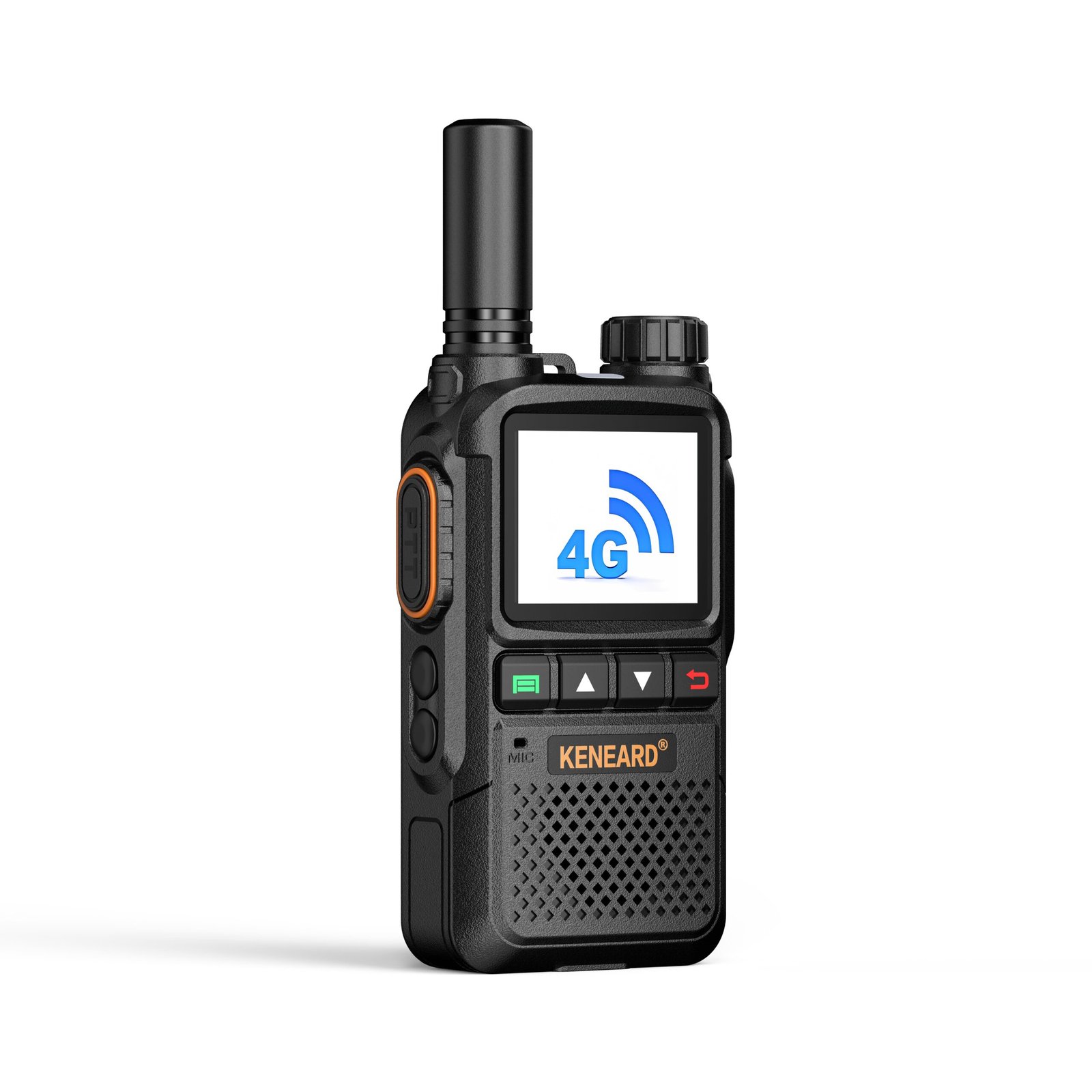

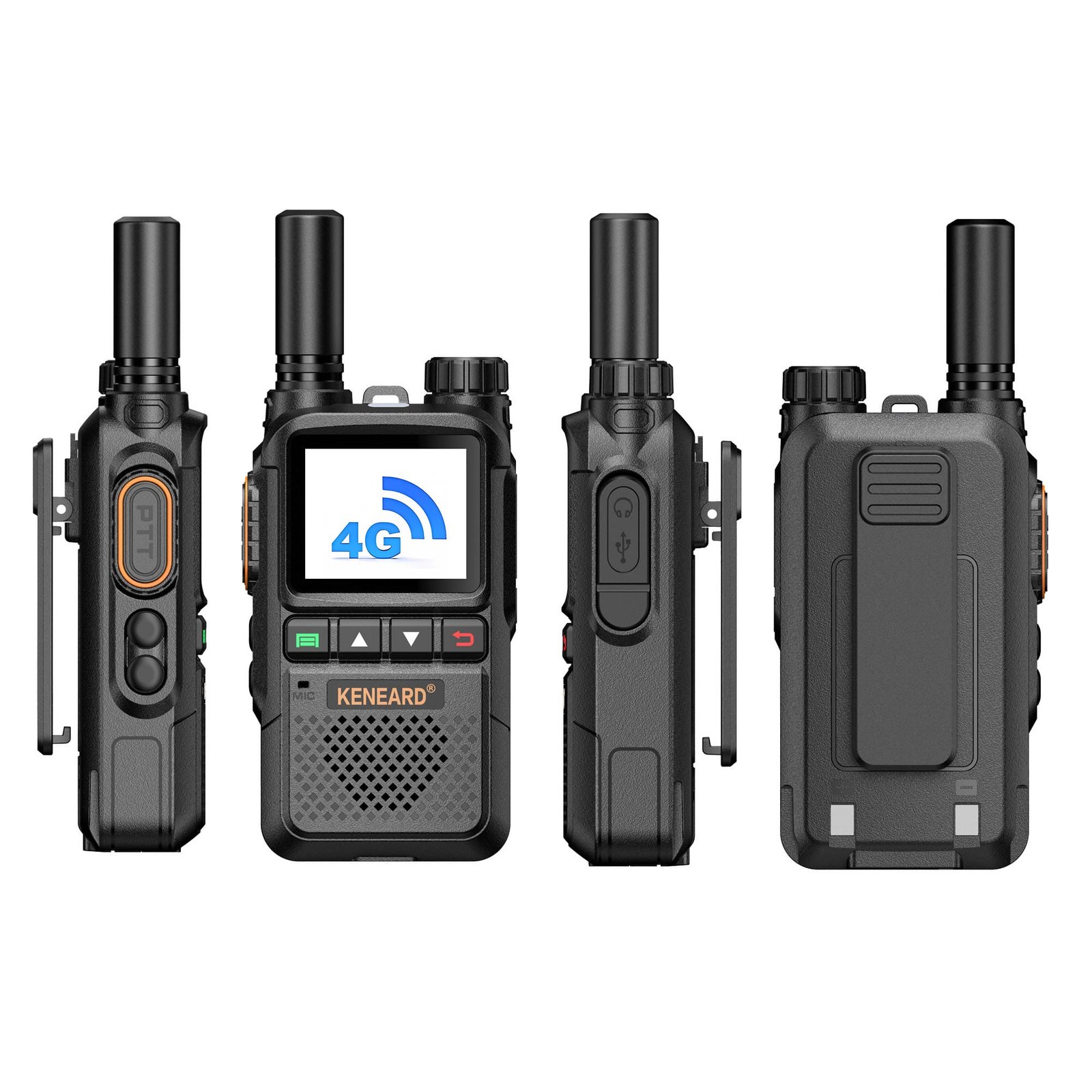

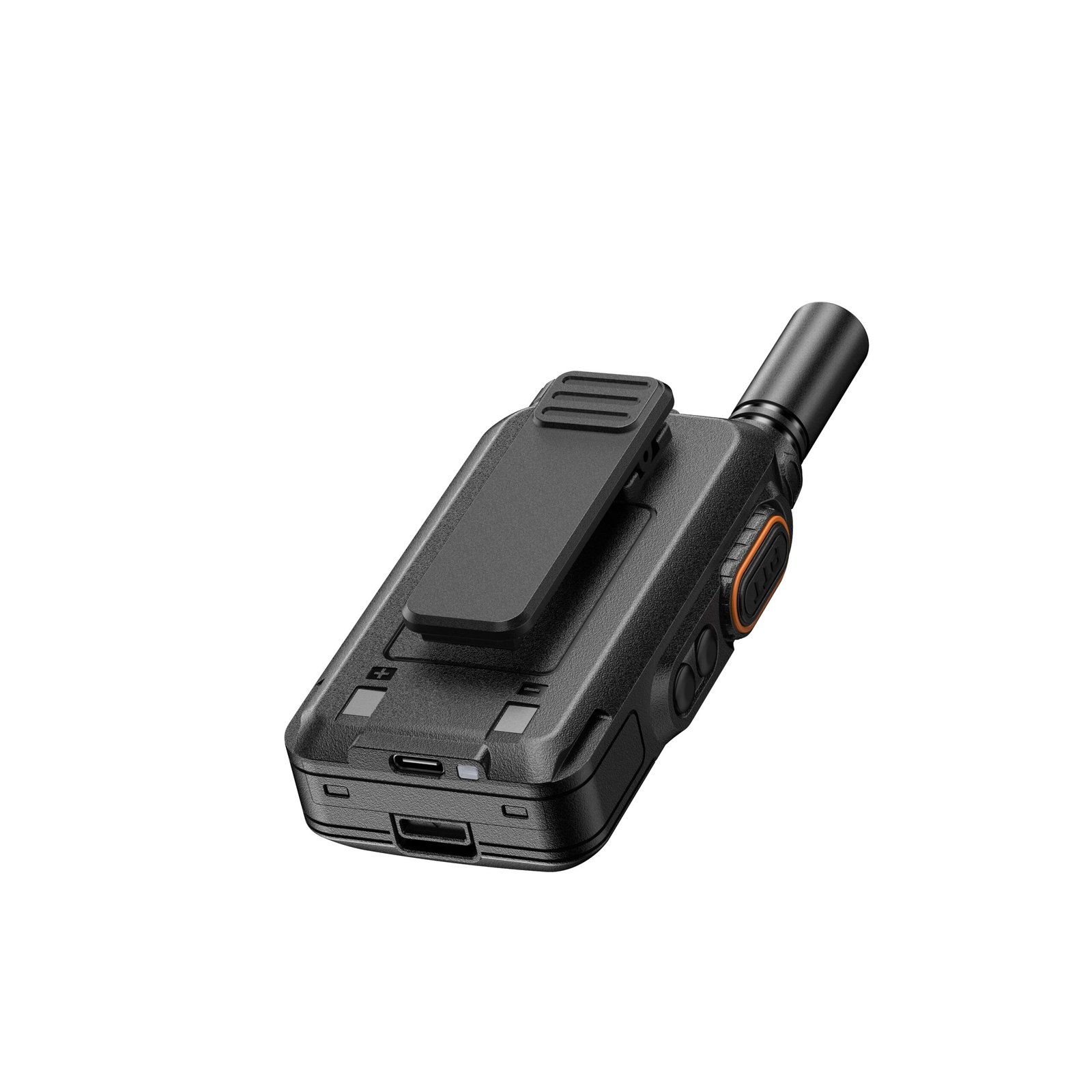

KE-996
POC Radio
• Full Netcom
• Single/Group/Group call
• Dual SIM auto switching
• Customised Shortcut Keys
• High definition big screen
• Quick Call Selection
• High Definition Audio
• GPS (Optional)
• Bluetooth Hands-Free (HFP) (Optional)
• All Network Compatible
• Multi-Platform Adaptation
• High Definition Audio
• Ultra long standby time
Description
| Indicator | Parameter |
|---|---|
| Frequency Range | TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B8 |
| Battery Capacity | 3000mAh (polymer) |
| Operating Voltage | DC 3.7V (rated voltage) |
| Charging Method | USB direct charging, Type-C port |
| SIM Card | nano SIM ×2 (12×9mm) |
| Dimension | 100mm × 54mm × 29mm |
| Weight | 152g |
| Parameter | Description |
|---|---|
| Application Processing | ARM Cortex-R5 Baseband processing in the kernel Main frequency: up to 614MHz |
| Operating System | FreeRTOS |
| Memory | PSRAM 8MB, FLASH 8MB |
| Network Type | CAT.1 |
| Antenna | Built-in FPC antenna |
| Screen | 1.77inch, Resolution: 128×160 |
| Wireless Rate | LTE FDD: 10Mbps DL / 5Mbps UL LTE TDD: 8.2Mbps DL / 3.4Mbps UL |
| Audio Output Power | 2W |
| Antenna Impedance | 50Ω |
| Channel Bandwidth | 10MHz |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +60°C |
